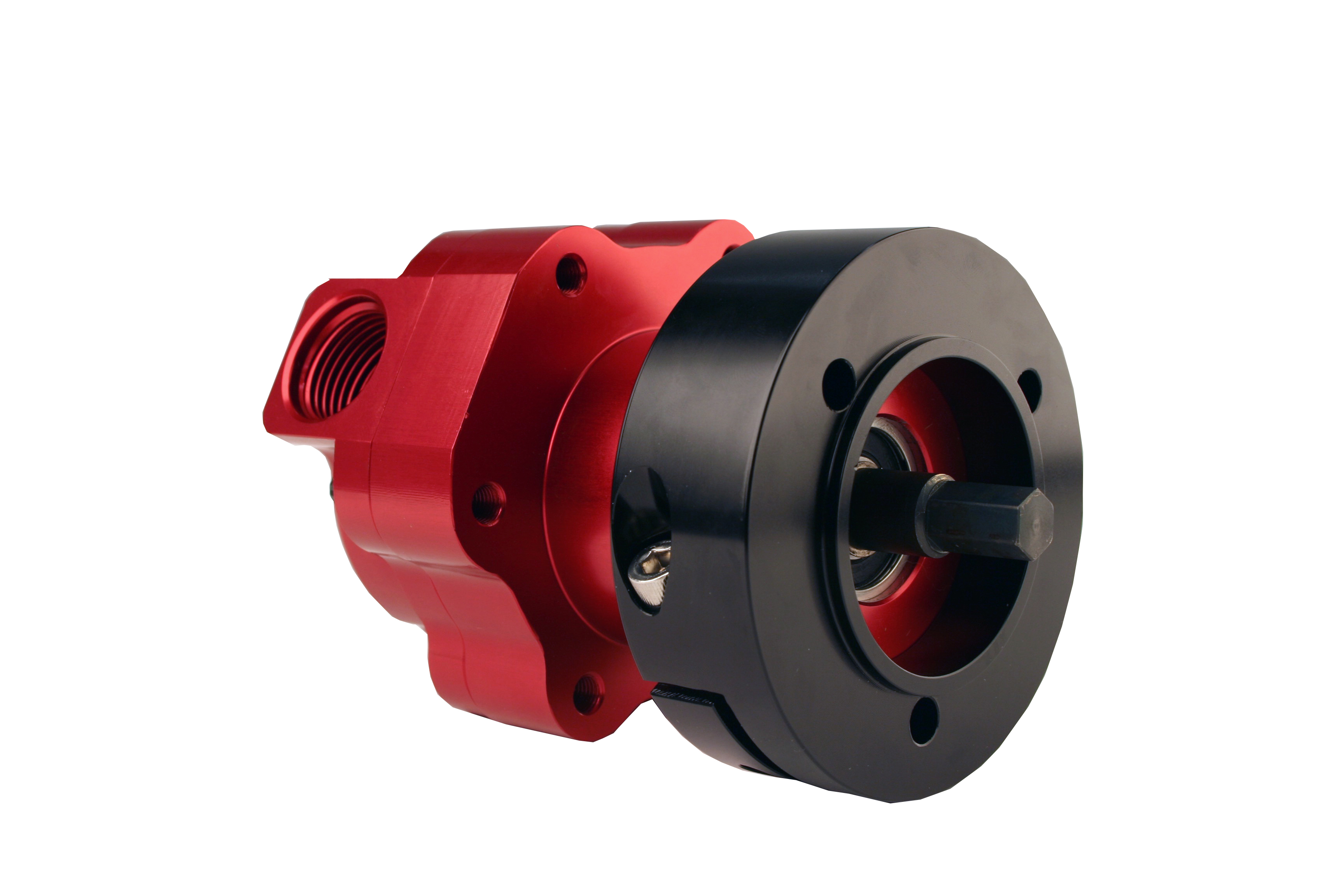

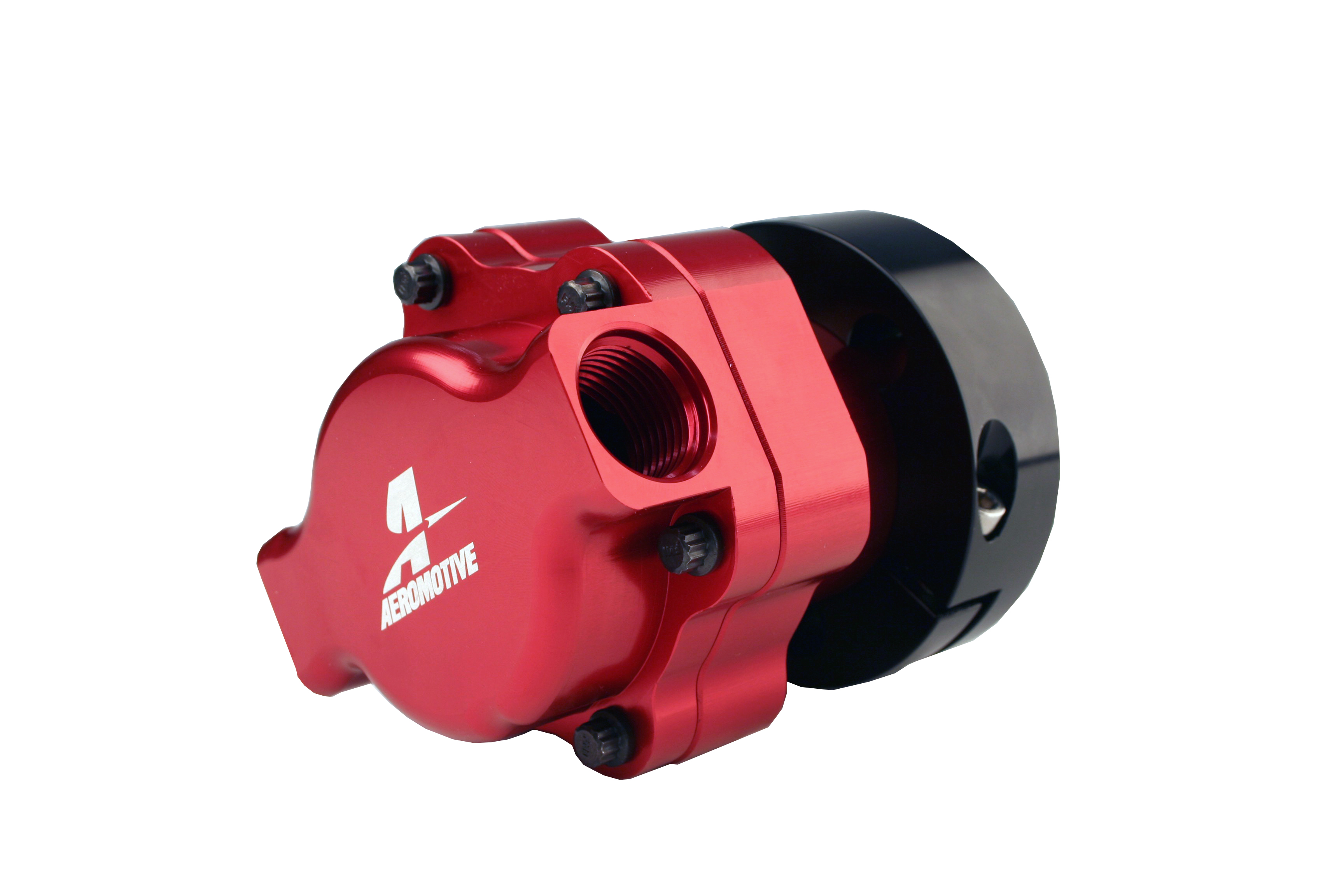

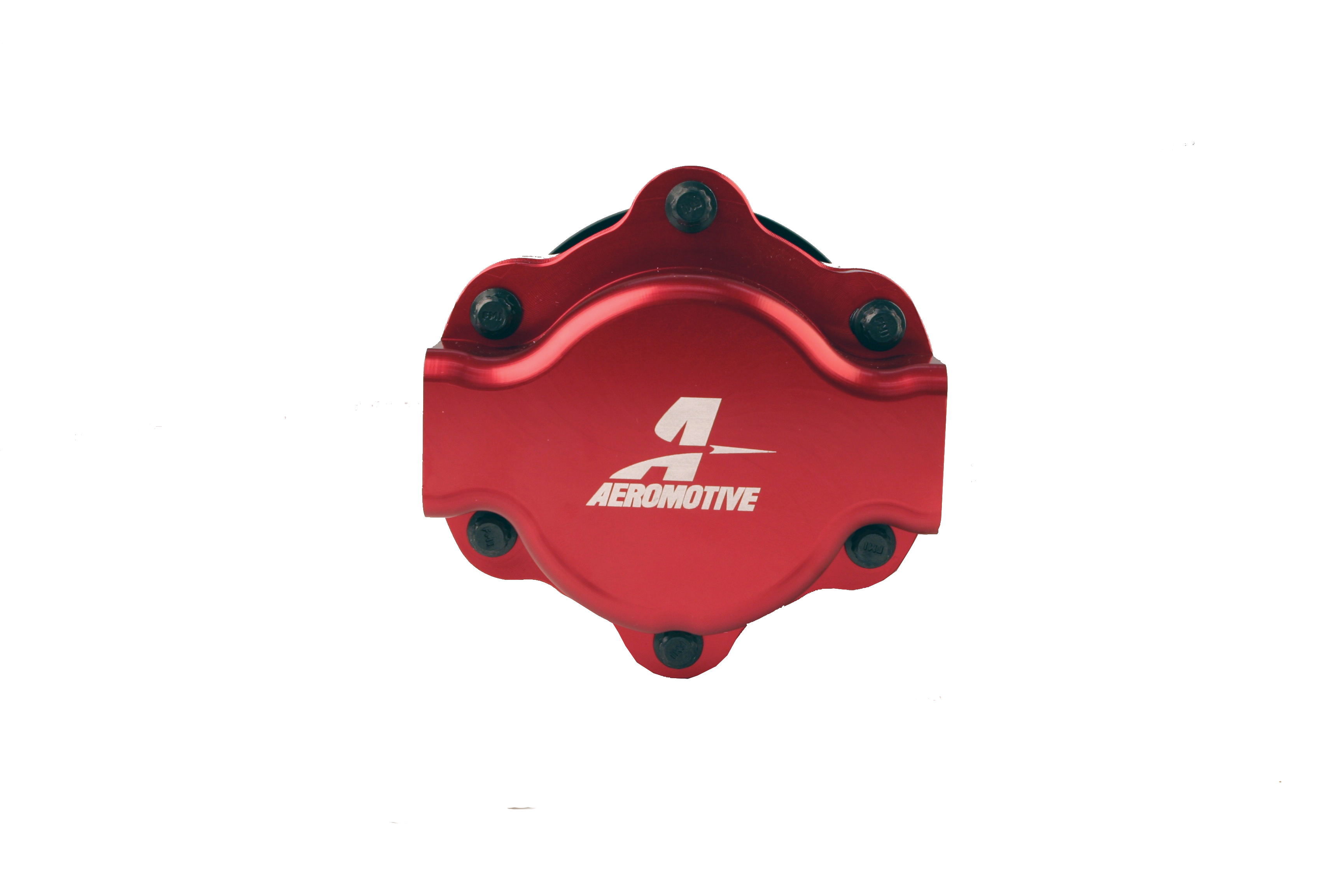

Billet Hex Drive Fuel Pump

Billet Hex Drive Fuel Pump



Alternative Views:


Our Price: $1,000.00


Availability: Usually Ships in 24 to 48 Hours
Product Code: AERO-11107
Qty:

Description Extended Information


Get the same unparalleled performance you get from our Billet Belt Drive Fuel Pump (P/N 11105), with the convenience of direct drive. The Hex Drive Fuel Pump can be mounted and driven directly from the back of a properly prepared external oil pump or driven directly by the cam through a timing cover adapter. Designed to solve fuel delivery problems in high horsepower, forced-induction EFI applications, as well as the now popular, carbureted applications on gas or methanol.

  • Utilizes standard, 3/8? hex drive shaft and adjustable, billet mounting
    collar with standard 3-bolt mounting pattern and hardware.
  • Proven performance, powering some of the world's fastest EFI vehicles.
  • Supports up to 3600 HP gas, 1800 HP methanol.
  • Compact size facilitates easy mounting.
  • Billet aluminum CNC-machined body, not ‘cast'.
  • ORB-10 inlet and outlet ports.
  • For EFI applications use regulator P/N 13113.
  • Carbureted gasoline applications require regulator P/N 13202 or P/N 13212.
  • Alcohol applications require Double Adjustable Regulator P/N 13209 or 13214.Note: Electric Priming Kit available – P/N 17301 (see Accessories)View Installation Instructions
Features


  • Utilizes standard, 3/8? hex drive shaft and adjustable, billet mounting collar with standard 3-bolt mounting pattern and hardware.


  • Proven performance, powering some of the world's fastest EFI vehicles.


  • Supports up to 3600 HP gas, 1800 HP methanol.


  • Compact size facilitates easy mounting.


  • Billet aluminum CNC-machined body, not ‘cast'.


  • ORB-10 inlet and outlet ports.


  • For EFI applications use regulator P/N 13113.


  • Carbureted gasoline applications require regulator P/N 13202 or P/N 13212.


  • Alcohol applications require Double Adjustable Regulator P/N 13209 or 13214. Note: Electric Priming Kit available – P/N 17301 (see Accessories) View Installation Instructions
