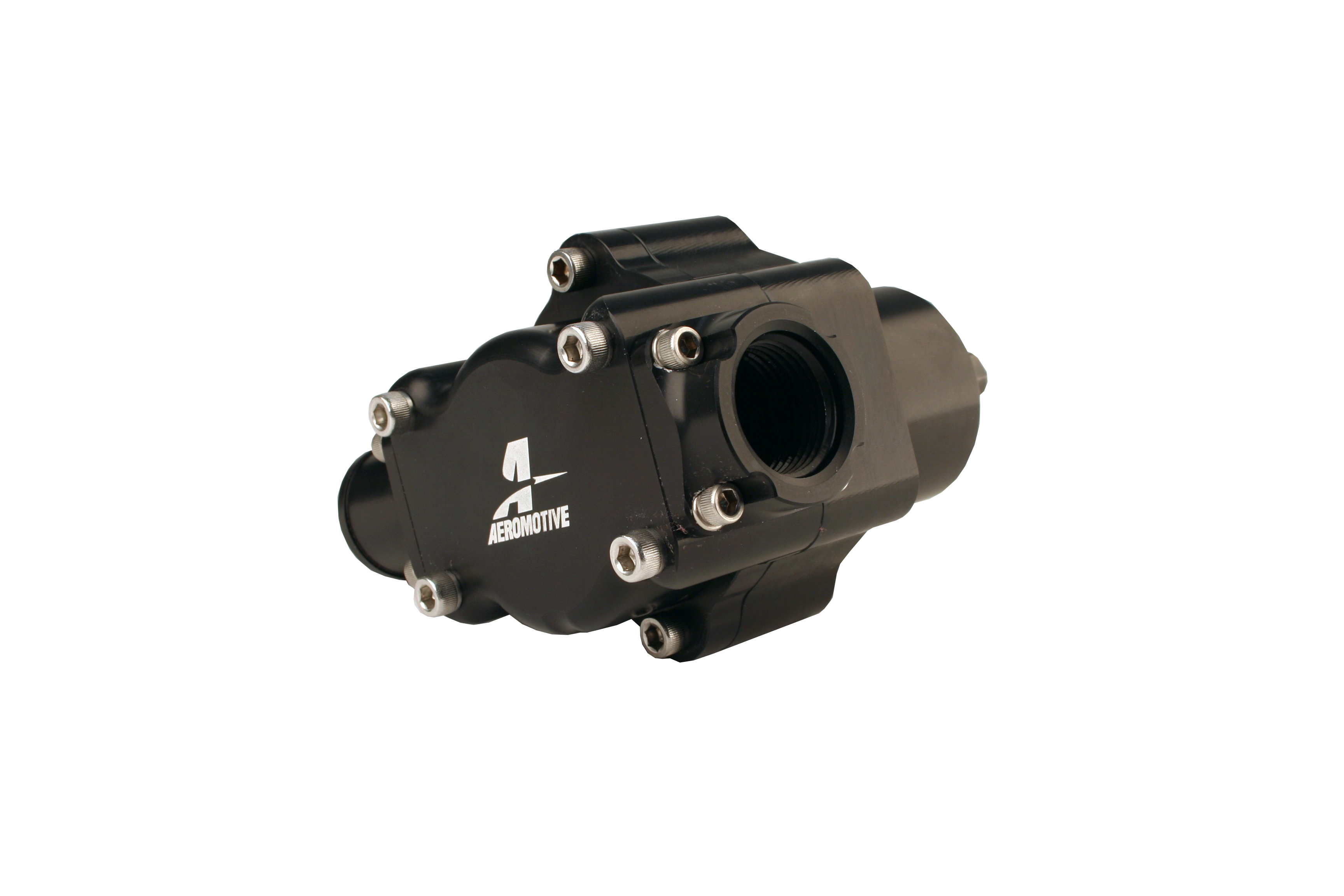

12-Series Belt Drive Mechanical Pump

12-Series Belt Drive Mechanical Pump



Alternative Views:


Our Price: $1,150.00


Availability: Usually Ships in 24 to 48 Hours
Product Code: AERO-11115
Qty:

Description Technical Specs Extended Information


P/N 11115: 12 Series Belt Drive Fuel Pump
12-GPM Belt Drive Mechanical Fuel Pump

Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Belt Drive Pump must be driven by a pulley and cog drive belt allowing the pump to be driven from your crankshaft. It can be used in high or low pressure applications.

  • Flows up to 12 GPM
  • 5,000+ HP on gas, up to 2500 HP methanol.
  • High efficiency, Gerotor pumping mechanism.
  • Tough, Type III hard coat anodized body.
  • CNC Machined from 6061 T6 aircraft aluminum.
  • Includes both 1.25? barb and AN-16 Male inlet.
  • ORB-12 female outlet port.

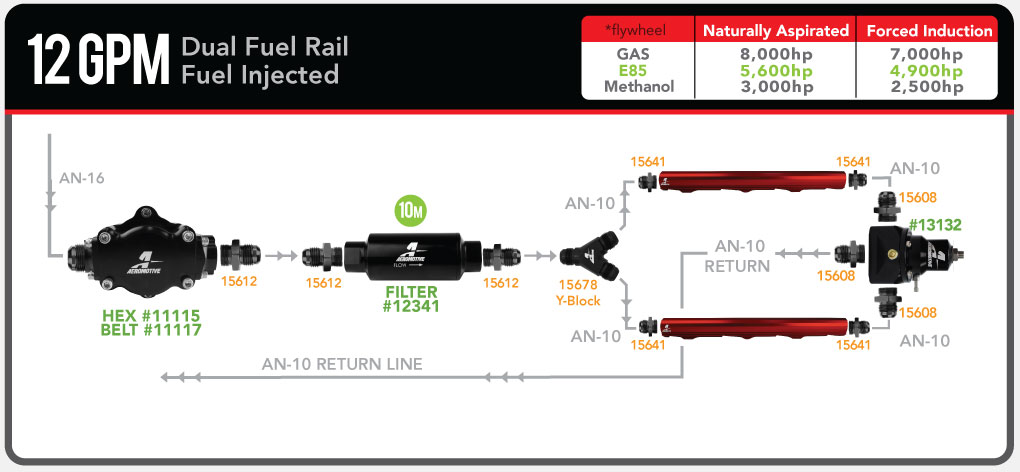

EFI applications require high-flow bypass regulators:
P/N 13132, 13133, 13137 or 13113.

Sold Separately:
Mounting Bracket: P/N 11706
Cog Pulley: P/N 21109.
Electric Priming/Starting Kit: P/N 17301

View Installation Instructions

Features


  • Flows up to 12 GPM


  • 5,000+ HP on gas, up to 2500 HP methanol.


  • High efficiency, Gerotor pumping mechanism.


  • Tough, Type III hard coat anodized body.


  • CNC Machined from 6061 T6 aircraft aluminum.


  • Includes both 1.25? barb and AN-16 Male inlet.


  • ORB-12 female outlet port.
