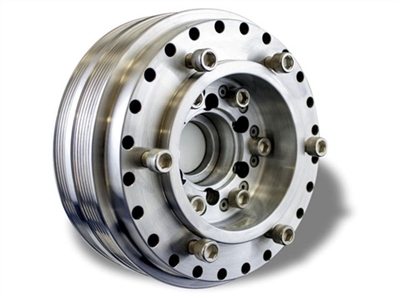

Innovators West GenV LT4 Damper
Innovators West GenV LT4 Damper



Alternative Views:
Our Price: $660.00


Availability: Usually Ships in 24 Hours
Product Code: DMINNOVATORSLT4


Add Boost Pulley Ring:

Qty:
Description

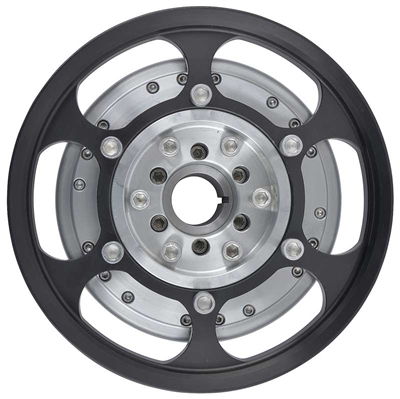

2009-2015 CTS-V and 2012-2015 Camaro ZL1 - Innovators West - 8-Rib Standard Diameter Harmonic Balancer
Innovators West 8-rib standard diameter balancer for the 2009-2015 CTS-V and 2012-2015 Camaro ZL1 is constructed from billet aluminum, is made in the USA, and installs directly in place of the OEM unit. The IW balancer and crank ring assembly weighs only 12.6 lbs, compared to 16.2 lbs for the factory steel unit. Installation of this kit removes significant rotating mass from the front of the engine.

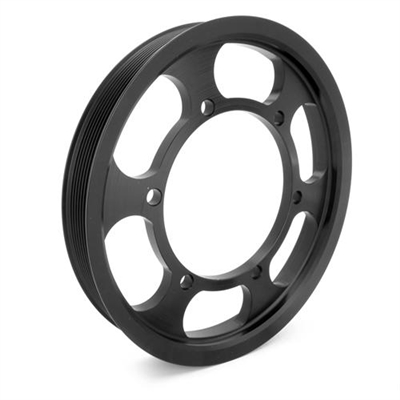

As of 6/2017, the fitment of the 8.60" (7.5% OD), the 9.10" (13.6% OD), 9.55" (19.6%), and 10.0" (25% OD) pulley rings have been confirmed. In the LT4 application, it is not necessary to change or relocate idler pulleys to fit crank pulley rings as large as 10.0"

The 9.10" kit requires the 080842HD belt. The 10.0" kit uses the K080865 belt. The 9.55" kit should use a belt that is approximately 85.3" in length. Remaining belt data will be added here once available.
