2003-2013 Corvette Fuel Pump Module (dual / wide)
2003-2013 Corvette Fuel Pump Module (dual / wide)



Our Price: $440.00


Availability: Usually Ships in 24 to 48 Hours
Product Code: FOR38-802
Qty:

Description

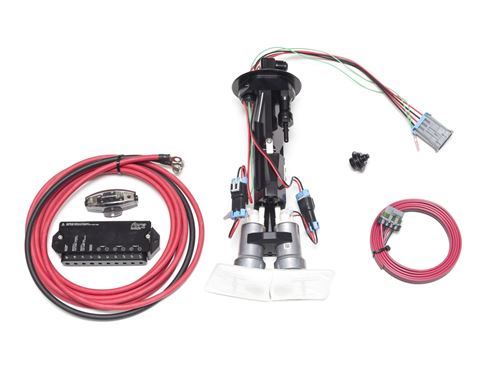

Our most powerful twin pump fuel pump solution for the 2003-2013 Corvette. Coupled with dual fuel pumps and our FC3 controller, this module will provide more fuel than any other in-tank solution plus low noise and fuel heat.

The module is constructed from CNC machined aluminum, anodized black. All bare hardware is stainless steel and brass, and all o-rings are Viton. The wires pass through the flange using our proven hermetic seal. The pump outlets are sealed using our Viton sealed cartridges using internal stainless snap rings. (no fuel hose or clamps) Inside the fuel tank, our module interfaces with the factory venturi driven crossover function.

On the passenger side, we provide a CNC machined bypass plug so the venturi jet continues to function at lower fuel pressures. Our FC3 will operate one pump full time to keep fuel heat and noise levels down, and the remaining pump will activate under a trigger signal from your boost controller, aftermarket engine management system, or a pressure switch. Alternatively, you can run both pumps full time. Ideally, we suggest running a more reliable, cooler running low performance pump full time, then running high performance pump in the secondary positions.

  • Supports 1200 rear wheel horsepower (call for more detail on your application)
  • Requires aftermarket fuel lines, upgraded filtration, and external fuel pressure regulator (see our complete systems)
  • Retains OE level sender and crossover function (passenger side regulator bypass plug included)
  • E85 and race fuel compatible (see Fuel Pump Selection for fuel compatibility)
  • O-ring pump seals eliminate in-tank fuel hose to completely eliminate failures
  • Hermetic wire seal completely eliminates the possibility of fuel smells and leaks
  • Two pairs of 12 gauge power wires ensure maximum pump performance
