PHR Gen 2 Race Engine Breather Tank for 1993-1998 Supra - Right Hand Drive
PHR Gen 2 Race Engine Breather Tank for 1993-1998 Supra - Right Hand Drive



Alternative Views:
Our Price: $372.90


Product Code: PHR-01011085


Add 12 AN Breather Lines:

Tank Finish:

Qty:
Description

Anyone building a high horsepower/high boost 2JZGTE engine has to consider the effects of crankcase pressure at these levels. With the standard PCV valve (only7mm) the engine simply is not able to remove pressure fast enough from the crank case while under boost. The PHR Race Engine Breather Kit solves this problem, by increasing the venting area by over 200%. By removing crank case pressure, you increase engine efficiency and therefore increase horsepower.

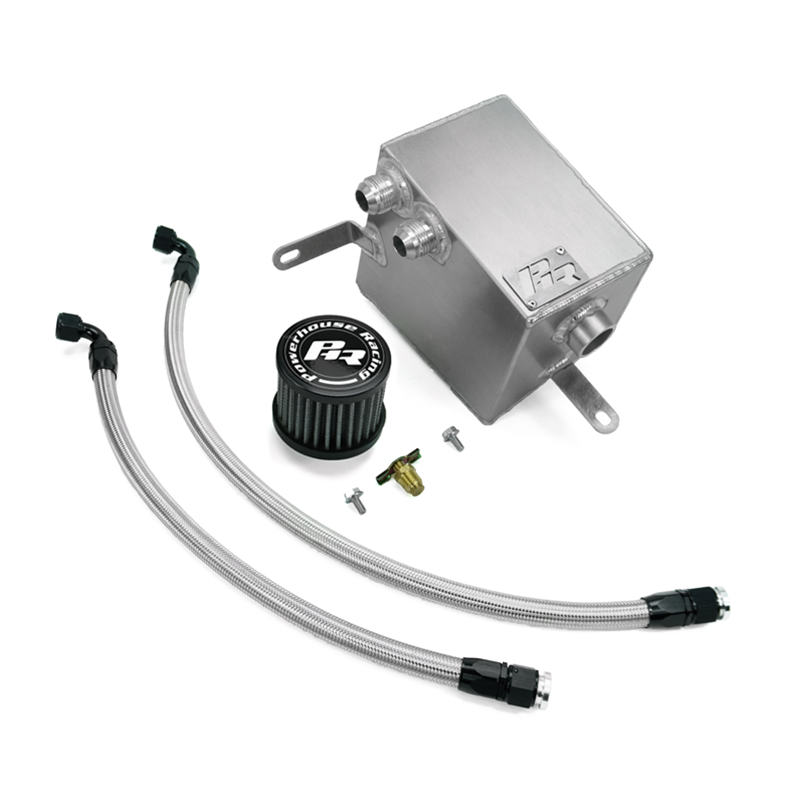

This kit includes:

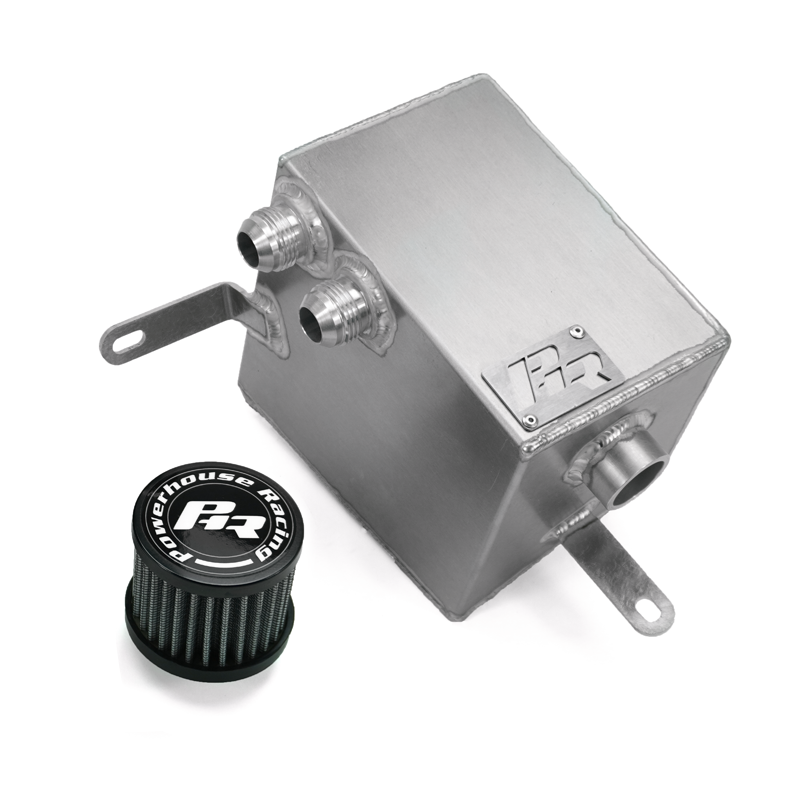

  • Hand-built aluminum vent tank with proprietary internal baffling - raw finish
  • PHR 3'' Vent Filter

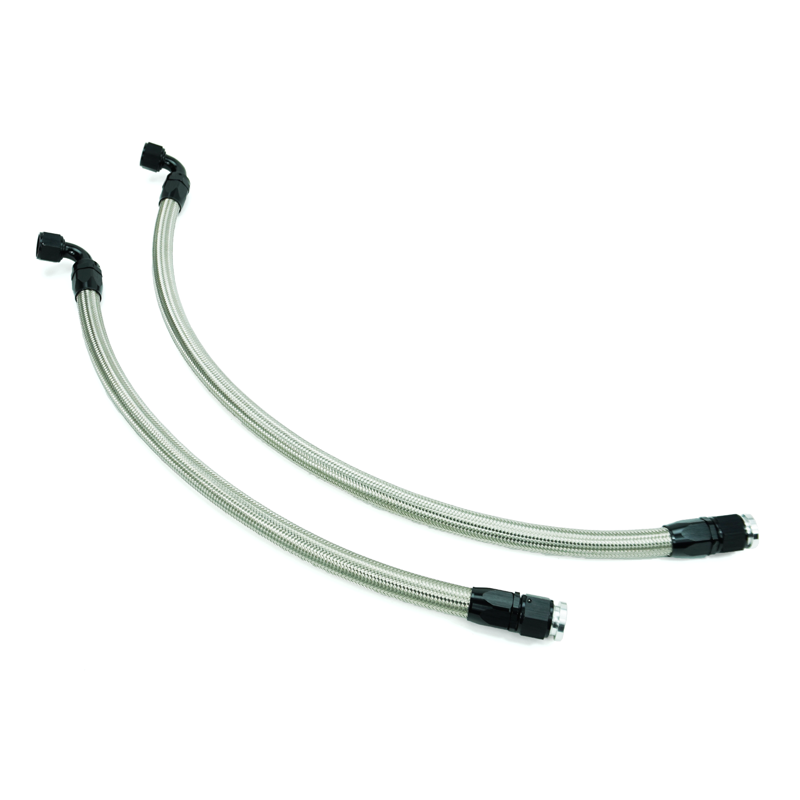

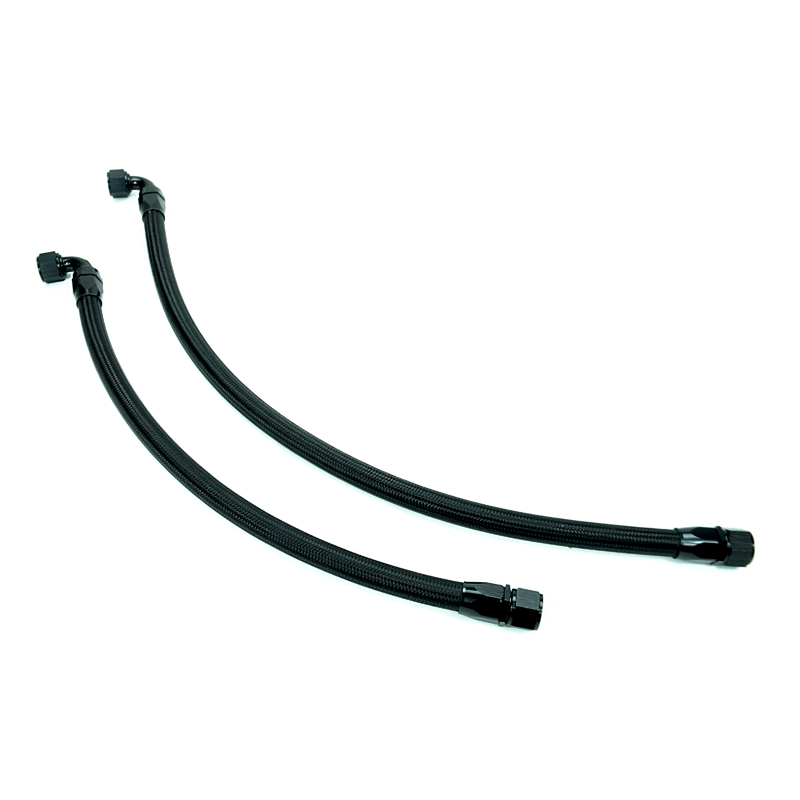

  • Optional- Dual 12AN valve cover suction lines with Black Ends, and choice of black braided or stainless braided line
  • 12AN weld-on fittings for the valve covers (included with option line kit)

Anyone who has ever put together 12AN lines and fittings can tell you how costly something like this is to put together. This is not merely an "oil catch can" but rather a complete engine breathing system for big boost/big HP engines. Stock or mildly modified engines can also benefit from this setup, but only slightly. You must remove the OEM charcoal canister in order to install the breather tank on the passenger side of the engine bay.
