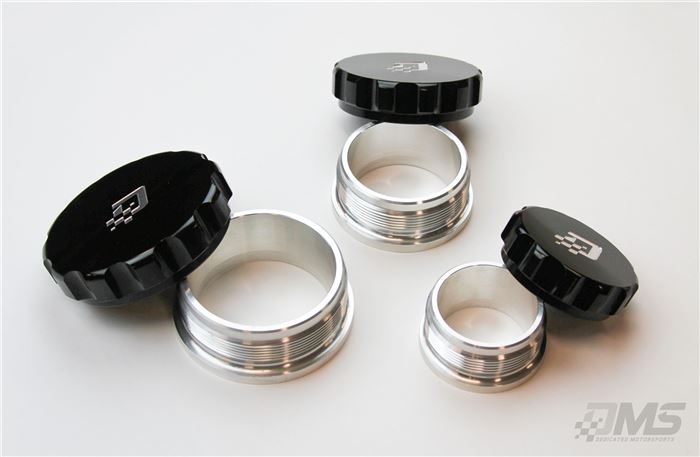

2.5" DMS Billet Aluminum Weld on Bung and Anodized Fill Cap

2.5" DMS Billet Aluminum Weld on Bung and Anodized Fill Cap



Alternative Views:


Our Price: $32.50


Availability: Usually Ships in 24 to 48 Hours
Product Code: VIB-25FMS
Qty:

Description


Description:
1 Weld On Bung And Cap.

Dimensions:
  • Anodized Color Specifications: Black and Silver
  • Bung Matierial: T-6061 Aluminum
  • Cap Matierial: Aluminum Composite

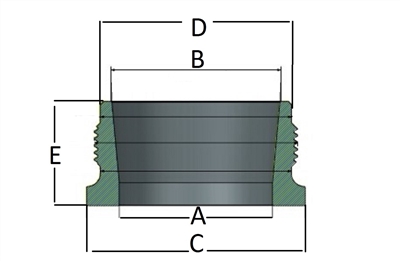

  • Bung Base Inner Diameter =A: 2-5/16" or 59mm
  • Bung Opening Inner Diameter =B: 2-1/2" or 62mm
  • Bung Base Outer Diameter =C: 3-1/4" or 82mm
  • Bung Opening Outer Diameter =D: 2-7/8" or 72mm
  • Bung Hieght = E: 1-3/8" or 34mm
  • Total Height With Cap: 1-1/2" or 40mm
  • Cap Outer Diameter: 3-5/8" or 91mm
  • Thread Pitch: 12NPT
