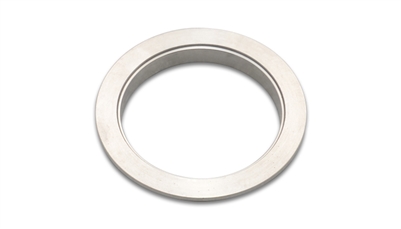

Stainless Steel V-Band Flanges (Individual)

Vibrant Stainless Steel V-Band Flanges (Individual) utilize a unique "Male/Female" flange design that ensures proper alignment inside the clamp. V-Band flanges are an excellent alternative to traditional flanged or slip fit tube connections. V-Band clamps offer a low profile and modular connection. They work especially well under operating conditions involving stress, vibration, and significant temperature fluctuations. The V-Band flanges are secured with a quick release clamp and allow for a gasket free seal as well as superior positive retention compared to other tube coupling methods. Vibrant V-Band flanges are counterbored for the tubing size you select, making welding simple.

VMS Part #	MFG Part #	Style	Tube Size (OD 1)	Flange OD (OD 2)	A	B
VIBVBFS-150-F	1486S	Female	1.50" (38.1mm)	2.05" (52mm)	0.56" (14.2mm)	0.56" (14.2mm)
VIBVBFS-150-M	1486A	Male	1.50" (38.1mm)	2.05" (52mm)	0.56" (14.2mm)	0.56" (14.2mm)
VIBVBFS-175-F	1487S	Female	1.75" (44.5mm)	2.32" (59mm)	0.56" (14.2mm)	0.56" (14.2mm)
VIBVBFS-175-M	1487A	Male	1.75" (44.5mm)	2.32" (59mm)	0.56" (14.2mm)	0.56" (14.2mm)
VIBVBFS-200-F	1488S	Female	2.00" (50.8mm)	2.56" (65mm)	0.56" (14.2mm)	0.56" (14.2mm)
VIBVBFS-200-M	1488A	Male	2.00" (50.8mm)	2.56" (65mm)	0.56" (14.2mm)	0.56" (14.2mm)
VIBVBFS-225-F	1489S	Female	2.25" (57.2mm)	2.80" (71mm)	0.56" (14.2mm)	0.56" (14.2mm)
VIBVBFS-225-M	1489A	Male	2.25" (57.2mm)	2.80" (71mm)	0.56" (14.2mm)	0.56" (14.2mm)
VIBVBFS-238-F	1497S	Female	2.38" (60.5mm)	3.19" (81mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-238-M	1497A	Male	2.38" (60.5mm)	3.19" (81mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-250-F	1490S	Female	2.50" (63.5mm)	3.19" (81mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-250-M	1490A	Male	2.50" (63.5mm)	3.19" (81mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-275-F	1496S	Female	2.75" (69.9mm)	3.78" (96mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-275-M	1496A	Male	2.75" (69.9mm)	3.78" (96mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-300-F	1491S	Female	3.00" (76.2mm)	3.78" (96mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-300-M	1491A	Male	3.00" (76.2mm)	3.78" (96mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-350-F	1492S	Female	3.50" (88.9mm)	4.13" (105mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-350-M	1492A	Male	3.50" (88.9mm)	4.13" (105mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-400-F	1493S	Female	4.00" (101.6mm)	4.61" (117mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-400-M	1493A	Male	4.00" (101.6mm)	4.61" (117mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-500-F	1494S	Female	5.00" (127.0mm)	5.75" (146mm)	0.63" (16.0mm)	0.63" (16.0mm)
VIBVBFS-500-M	1494A	Male	5.00" (127.0mm)	5.75" (146mm)	0.63" (16.0mm)	0.63" (16.0mm)
