GSC Power-Division Beehive Valve Spring with Ti Retainer for the Toyota 2JZ
GSC Power-Division Beehive Valve Spring with Ti Retainer for the Toyota 2JZ

Our Price: $703.02


Product Code: GSC5044
Qty:

Description


*Flip phone to landscape to see full table!*

GSC5044 Beehive Valve Spring Kit with Ti Retainer for Toyota 2JZ
SetupCoil Bind (in)Install Height (in)Seat Pressure (lbs)Open Pressure, 10.50mm LiftMaximum Valve Lift (in)
Beehive0.8251.36082218lbs @ 0.947"0.475
  • Max RPM: 9,500 RPM
  • Max boost: 40 psi

*****MAY NOT FIT ALL VVTi and NON TURBO HEADS***** check for proper fitment of the spring seat base during install. May require GSC5064, GSC5066, or GSC5744 spring kit for proper fitment of non 2jzgte heads

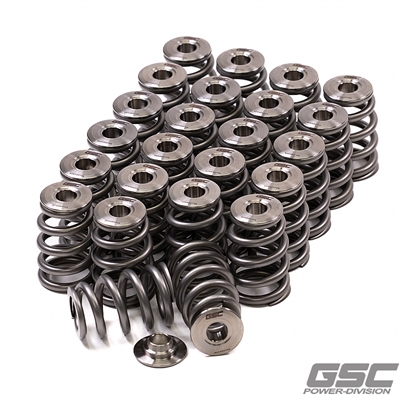

The GSC Power-Division Beehive Valve Spring Kit with Ti Retainer for the Toyota 2JZ includes 24 titanium retainers and 24 beehive valve springs. Our beehive spring utilizes advanced material heat treatment methods for superior load loss capabilities. These springs have the highest level of spring load retention while still maintaining good fatigue throughout the life of the spring. Beehive springs allow for the use of a smaller, lighter retainer allowing for higher RPM and more valve control.
