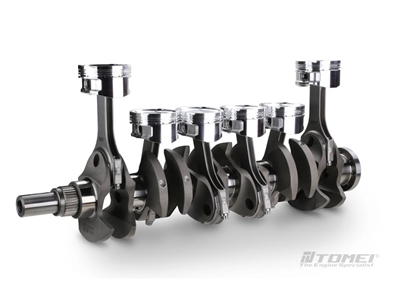

Tomei 3.6L Stroker Kit for 2JZ-GTE Supra includes a complete set with the forged crankshaft, forged pitons and forged H-beam connecting rods. Available with either the Tomei pistons or CP pistons.
Specifications:
- BORE (mm): 87.00 (STOCK +1.0)
- STROKE (mm): 100.00 (STOCK +14.0)
- DISPLACEMENT (cc): 3566.8
- C.C. VOLUME (cc): 45.0
- PISTON DOME VOL. (cc): -22.6
- PISTON DECK CLEARANCE/Height (mm): -0.5
- PISTON COMP.HEIGHT (mm): 29.50 (STOCK -4.5)
- ROD C-to-C (mm): 139.00 (STOCK -3.0)
- HEAD GASKET BORE (mm): 87.5
- C/R With 87.5-1.2: 8.64
- C/R With 87.5-1.5: 8.47
- C/R With 87.5-1.8: 8.30
- C/R With 87.5-2.0: 8.20
Vehicle Fitment:
2JZ-GTE 1993-1998 Toyota Supra
3.6 LITER STROKER KIT INCLUDES:
Fully forged CP pistonsFully forged connecting rodsFully forged crankshaft
